德國BOSERL研發制造節能環保減速機電機一體機_帶電機減速器一套_電動機與減速箱_電機減速器,19年創辦中國BOSERL減速機生產廠家伯仕傳動

減速機電機一體機_帶電機減速器一套_德國BOSERL電動機與減速箱生產廠家

咨詢服務熱線：

13360667204

微信13360667204

傘齒輪斜齒輪減速機電機
網站首頁 > BOSERL減速機 > 傘齒輪斜齒輪減速機廠家 > KA系列減速機廠家

KA37DM71S4詳細信息

prevnext

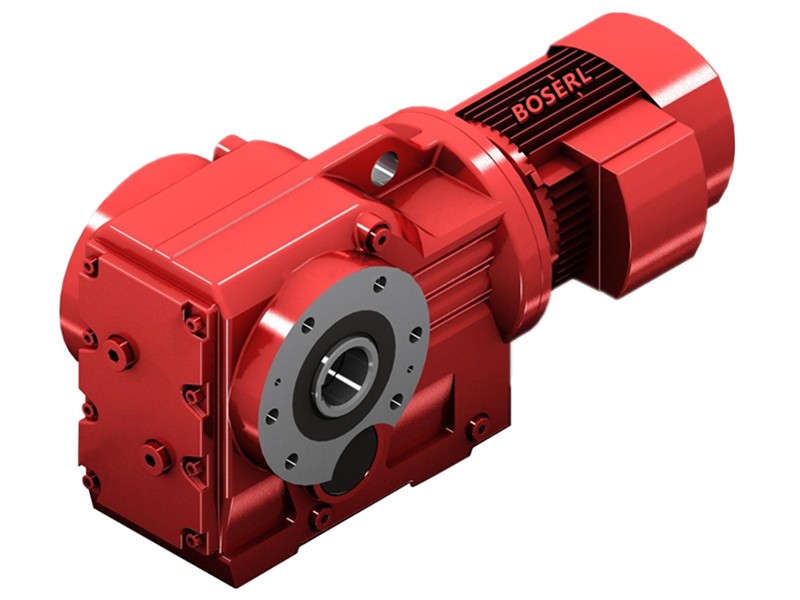

KA37DM71S4

訂購熱線：13360667204
  1. 詳細信息

關鍵詞：平移4噸負載電機減速機_KA37DM71S4_KA37DT71S4

KA37DM71S4減速機電機參數：

型號減速比功率轉數扭矩重量力矩安全系數
KA37DM71S497.810.37kw14rpm250N.m19kg2520N0.8
KA37DM71S483.690.37kw16rpm210N.m19kg5470N0.95
KA37DM71S472.540.37kw19rpm186N.m19kg5690N1.1
KA37DM71S467.80.37kw20rpm174N.m19kg5630N1.15
KA37DM71S458.60.37kw24rpm150N.m19kg5500N1.35
KA37DM71S449.790.37kw28rpm128N.m19kg5350N1.55
KA37DM71S444.460.37kw31rpm114N.m19kg5230N1.75
KA37DM71S437.970.37kw36rpm97N.m19kg5060N2.1
KA37DM71S435.570.37kw39rpm91N.m19kg4990N2.2
KA37DM71S429.960.37kw46rpm77N.m19kg4800N2.6
KA37DM71S428.830.37kw48rpm74N.m19kg4750N2.7
KA37DM71S424.990.37kw55rpm64N.m19kg4590N3.1
KA37DM71S423.360.37kw59rpm60N.m19kg4510N3.3
KA37DM71S420.190.37kw68rpm52N.m19kg4350N3.6
KA37DM71S417.150.37kw80rpm44N.m19kg4160N4.1
KA37DM71S415.310.37kw90rpm39N.m19kg4040N4.5
KA37DM71S413.080.37kw105rpm34N.m19kg3860N4.9
KA37DM71S412.140.37kw114rpm31N.m19kg3780N5.1
KA37DM71S410.490.37kw132rpm27N.m19kg3630N6
KA37DM71S48.910.37kw155rpm23N.m19kg3460N7
KA37DM71S47.96
0.37kw173rpm20N.m19kg3350N7.6
KA37DM71S46.8
0.37kw203rpm17N.m19kg3190N8.6
KA37DM71S46.370.37kw217rpm16N.m19kg3130N8.9
KA37DM71S45.360.37kw257rpm14N.m19kg2970N10

KA37DT71S4減速機電機參數：

型號減速比功率轉數扭矩重量力矩安全系數
KA37DT71S497.810.37kw14rpm250N.m19kg2520N0.8
KA37DT71S483.690.37kw16rpm210N.m19kg5470N0.95
KA37DT71S472.540.37kw19rpm186N.m19kg5690N1.1
KA37DT71S467.80.37kw20rpm174N.m19kg5630N1.15
KA37DT71S458.60.37kw24rpm150N.m19kg5500N1.35
KA37DT71S449.790.37kw28rpm128N.m19kg5350N1.55
KA37DT71S444.460.37kw31rpm114N.m19kg5230N1.75
KA37DT71S437.970.37kw36rpm97N.m19kg5060N2.1
KA37DT71S435.570.37kw39rpm91N.m19kg4990N2.2
KA37DT71S429.960.37kw46rpm77N.m19kg4800N2.6
KA37DT71S428.830.37kw48rpm74N.m19kg4750N2.7
KA37DT71S424.990.37kw55rpm64N.m19kg4590N3.1
KA37DT71S423.360.37kw59rpm60N.m19kg4510N3.3
KA37DT71S420.190.37kw68rpm52N.m19kg4350N3.6
KA37DT71S417.150.37kw80rpm44N.m19kg4160N4.1
KA37DT71S415.310.37kw90rpm39N.m19kg4040N4.5
KA37DT71S413.080.37kw105rpm34N.m19kg3860N4.9
KA37DT71S412.140.37kw114rpm31N.m19kg3780N5.1
KA37DT71S410.490.37kw132rpm27N.m19kg3630N6
KA37DT71S48.910.37kw155rpm23N.m19kg3460N7
KA37DT71S47.96
0.37kw173rpm20N.m19kg3350N7.6
KA37DT71S46.8
0.37kw203rpm17N.m19kg3190N8.6
KA37DT71S46.370.37kw217rpm16N.m19kg3130N8.9
KA37DT71S45.360.37kw257rpm14N.m19kg2970N10

KA37DM71S4減速機類型：

K..DR..底腳安裝斜齒輪—傘齒輪減速電機

KA..B DR..底腳空心軸安裝斜齒輪—傘齒輪減速電機

KV..B DR..底腳花鍵空心軸安裝斜齒輪—傘齒輪減速電機

KH..B DR..底腳空心軸鎖緊盤安裝斜齒輪—傘齒輪減速機

KF..DR..B5法蘭安裝斜齒輪—傘齒輪減速電機

KAF..DR..B5法蘭空心軸安裝斜齒輪—傘齒輪減速電機

KVF..DR..B5法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機

KHF..DR..B5法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機

KA..DR..空心軸斜齒輪─傘齒輪減速電機

KV..DR..花鍵空心軸安裝斜齒輪—傘齒輪減速電機

KH..DR..空心軸鎖緊盤斜齒輪─傘齒輪減速電機

KT..DR..空心軸安裝斜齒輪—傘齒輪減速電機

KAZ..DR..B14法蘭空心軸安裝斜齒輪─傘齒輪減速電機

KVZ..DR..B14法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機

KHZ..DR..B14法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機


KA37DM71S4減速機馬達安裝尺寸圖紙



KA37DM71S4減速機生產工廠展示：看廠請?zhí)崆叭祛A(yù)約

雙孔輸出減速機應用案例展示：

關鍵詞:KA系列減速機與電機_雙孔輸出減速電機一套_雙孔輸出減速機電機_雙孔輸出電機減速機_雙速電動機減速機_通孔減速機_雙速電機減速機生產廠家

KA系列減速機型號：KA37減速機,KA47減速機,KA57減速機,KA67減速機,KA77減速機,KA87減速機,KA97減速機,KA107減速機,KA127減速機,KA157減速機,KA167減速機,KA187減速機

KA系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間

如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求



標簽:   平移4噸負載電機減速機 KA37DM71S4 KA37DT71S4

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
KA37DM71S4減速機樣本 點擊下載
KA37DM71S4三維圖紙 點擊下載
